Informasjon

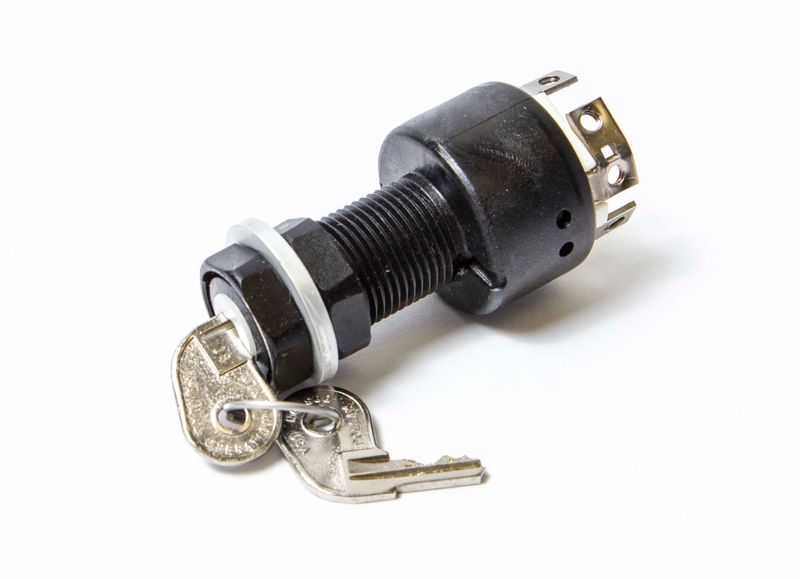

IGNITION SWITCHREPLACES: 386545 (6 TERMINALS - PISTOL SHAPED KEY -3 POSITION) 3 POS. MAGNETO-OFF-RUN-START POLLAK.
- Back Up Nut: Brass
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Long: 1 1/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Screw Tab
- Switch Positions: Off - Run - Start
- Type: 3 Position Magneto
- Maximum corrosion protection - eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
Tilsvarer:
Johnson/Evinrude Outboard
- 378238
- 386545
OMC: 0386545
IGNITION SWITCHREPLACES: 386545 (6 TERMINALS - PISTOL SHAPED KEY -3 POSITION) 3 POS. MAGNETO-OFF-RUN-START POLLAK.
- Back Up Nut: Brass
- Face Nut: Hex Black Plastic
- Hole Size: 7/8"
- Length: Long: 1 1/8" maximum panel thickness
- Material: Marine grade glass-filled Polyester
- Rated Choke: 7 Amp @ 12v DC
- Rated Ignition: 15 Amp @ 12v DC
- Rated Solenoid: 30 Amp @ 12v DC
- Terminal Type: 6 Screw Tab
- Switch Positions: Off - Run - Start
- Type: 3 Position Magneto
- Maximum corrosion protection - eliminates oxidation
- Inner seal between cylinder lock and contact plate
- Non-conductive housing eliminates potential shorts
Tilsvarer:
Johnson/Evinrude Outboard
- 378238
- 386545
Seadog
Seadog
- 420369-1
